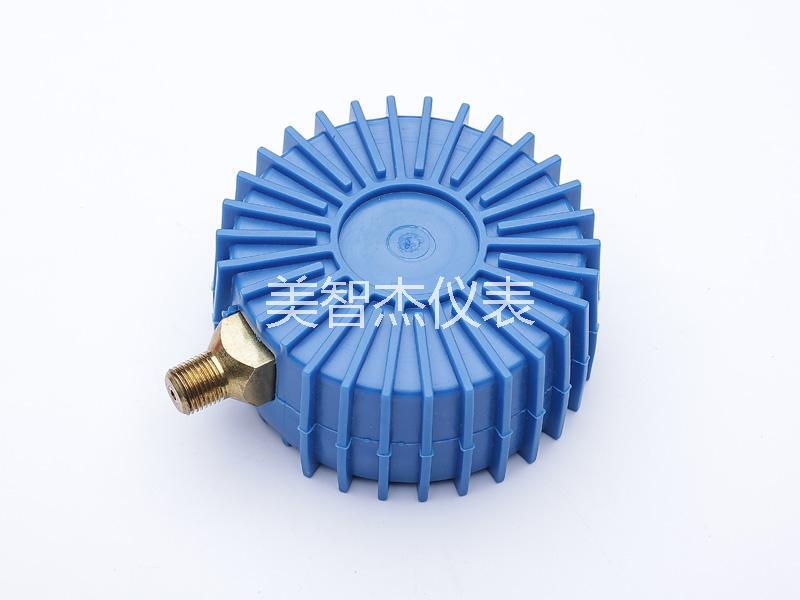

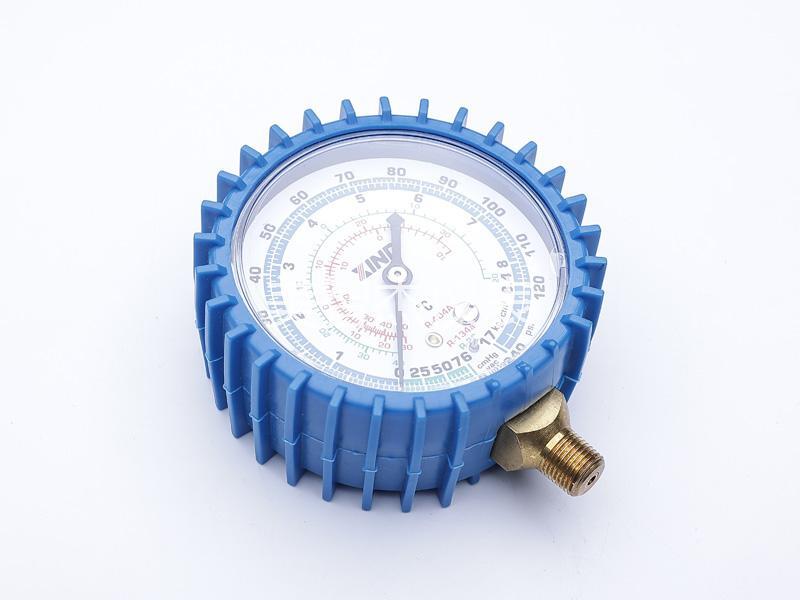

Y70RadialRefrigerantGauge（Rubber BootType B）
Y70RadialRefrigerantGauge（Rubber BootType B） - Anti-vibration Adjustable Zero Pressure Gauge Series Products
Product Categories
Y70RadialRefrigerantGauge（Rubber BootType B）
Y70RadialRefrigerantGauge（Rubber BootType B） - Anti-vibration Adjustable Zero Pressure Gauge Series Products
Main Features
Refrigerant specific pressure gauge
High precision measurement
Multiple overall dimensions available
Multiple installation types available
Quick Specifications
±1.0%F.S ±1.6%F.S
Measurement Accuracy
IP54
Protection Level
Product Specifications
Overall Dimensions40、50、60、70、80、90、100mm
Measurement Accuracy±1.0%F.S ±1.6%F.S%
Protection LevelIP54
Shell MaterialSteel treated with surface processes (electrophoresis, electroplating, spraying, etc.); engineering plastic
Thread Connection1/8"NPT 7/16-20UNF 5/16-24UNF
Installation TypeRadial/Axial/Axial Front
Pressure Range0-55 barbar
Accuracy Class1.6
