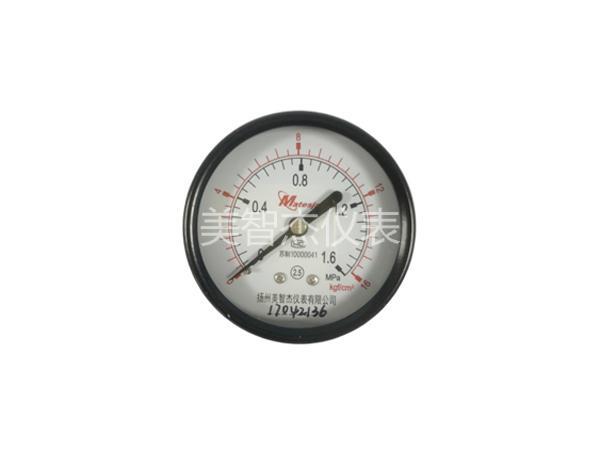

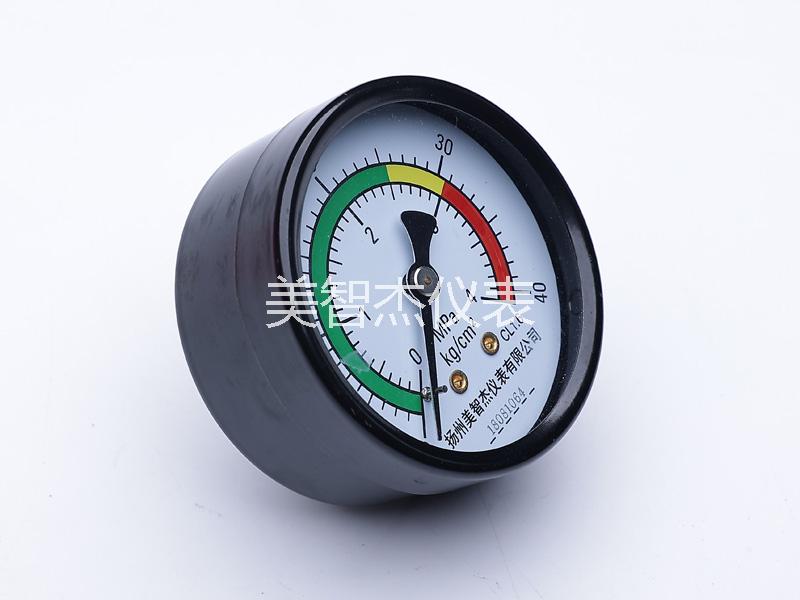

Y60 Axial Pressure Gauge
Y60 Axial Pressure Gauge - General Bourdon Tube Pressure Gauge Series Products
Main Features
General design
High precision measurement
Multiple overall dimensions available
Multiple installation types available
Quick Specifications
±1.0%F.S ±1.6%F.S ±2.5%F.S
Measurement Accuracy
IP54
Protection Level
Product Specifications
Overall Dimensions40、50、60、70、80、90、100、125、150、200mm
Measurement Accuracy±1.0%F.S ±1.6%F.S ±2.5%F.S%
Protection LevelIP54
Shell MaterialSteel treated with surface processes (electrophoresis, electroplating, spraying, etc.); engineering plastic
Thread Connection1/8"NPT 7/16-20UNF 5/16-24UNF

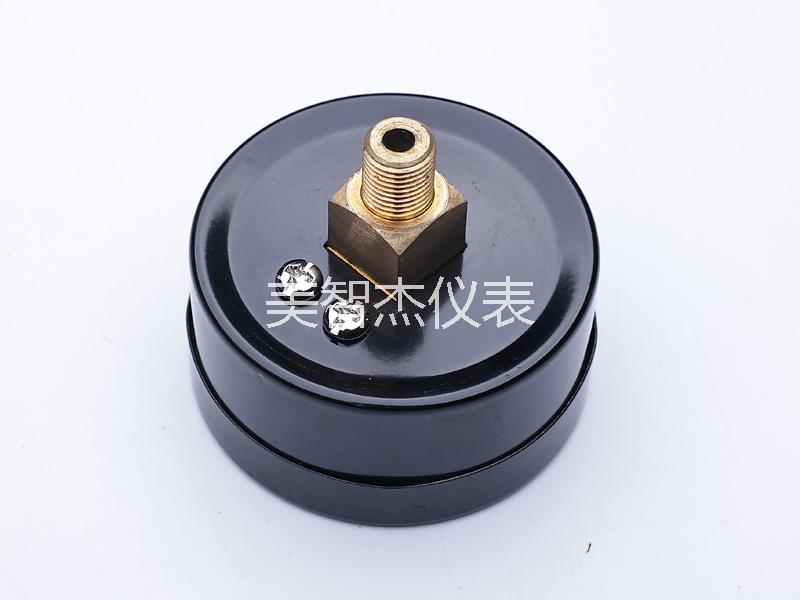

Installation TypeRadial/Axial/Axial Front
Pressure Range0-100bar
Accuracy Class1.6
Operating Temperature-20°C ~ +60°C°C
Dial ColorWhite dial
Pointer ColorBlack pointer
