膜盒Pressure Gauge

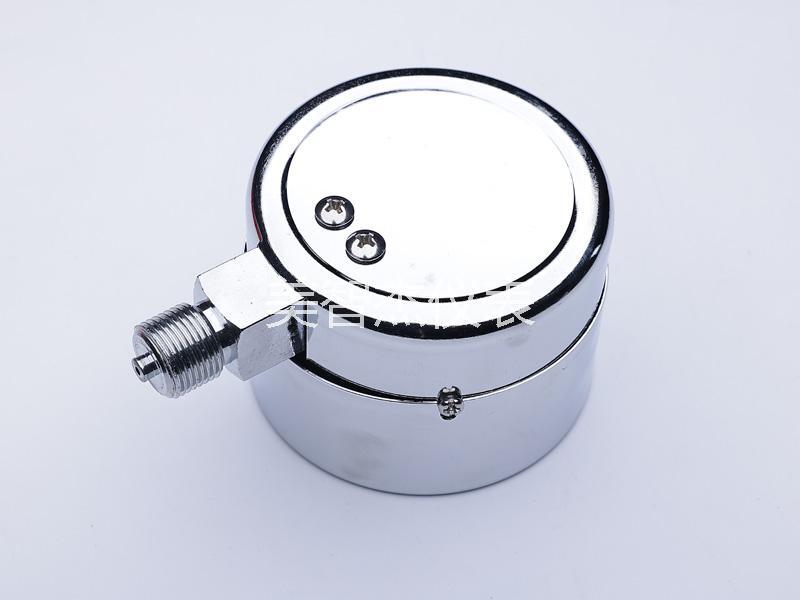

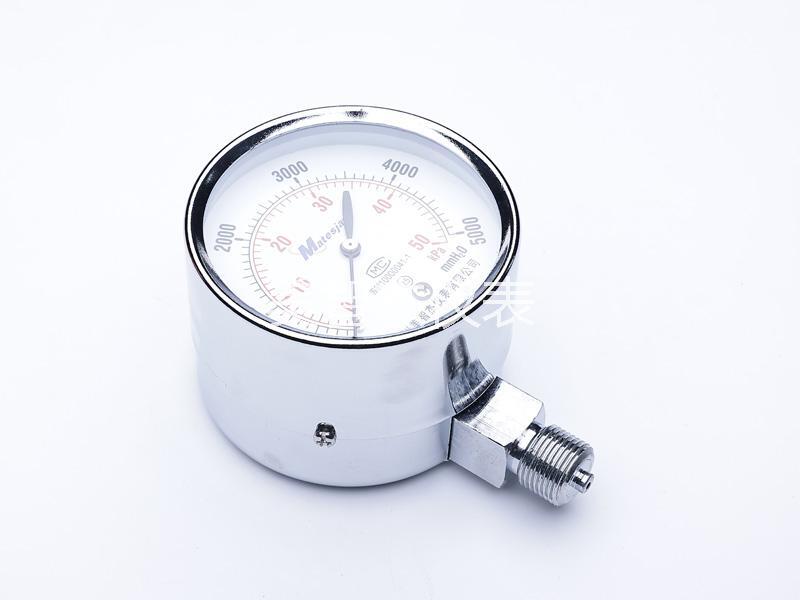

膜盒Pressure Gauge - Anti-vibration Adjustable Zero Pressure Gauge Series Products
Product Categories
膜盒Pressure Gauge
膜盒Pressure Gauge - Anti-vibration Adjustable Zero Pressure Gauge Series Products
Main Features
High-precision measurement
Steel material casing with surface treatment, strong corrosion resistance
IP54 protection level
Multiple external dimensions available (60, 90, 125mm)
Quick Specifications
±1.6%F.S ±2.5%F.S
Measurement Accuracy
IP54
Protection Level
Product Specifications
Overall Dimensions60、90、125mm
Measurement Accuracy±1.6%F.S ±2.5%F.S%
Protection LevelIP54
Shell MaterialSteel material with surface treatment (electrophoresis, electroplating, spray coating, etc.); Engineering plastic
Thread ConnectionNPT PT BSP（1/8"1/4"3/8"1/2"）M14×1.5 M20×1.5
Installation TypeRadial/Axial/Axial front
Operating Temperature-20°C ~ +60°C°C
Dial ColorWhite dial with green and red arcs
Pointer ColorBlue pointer
